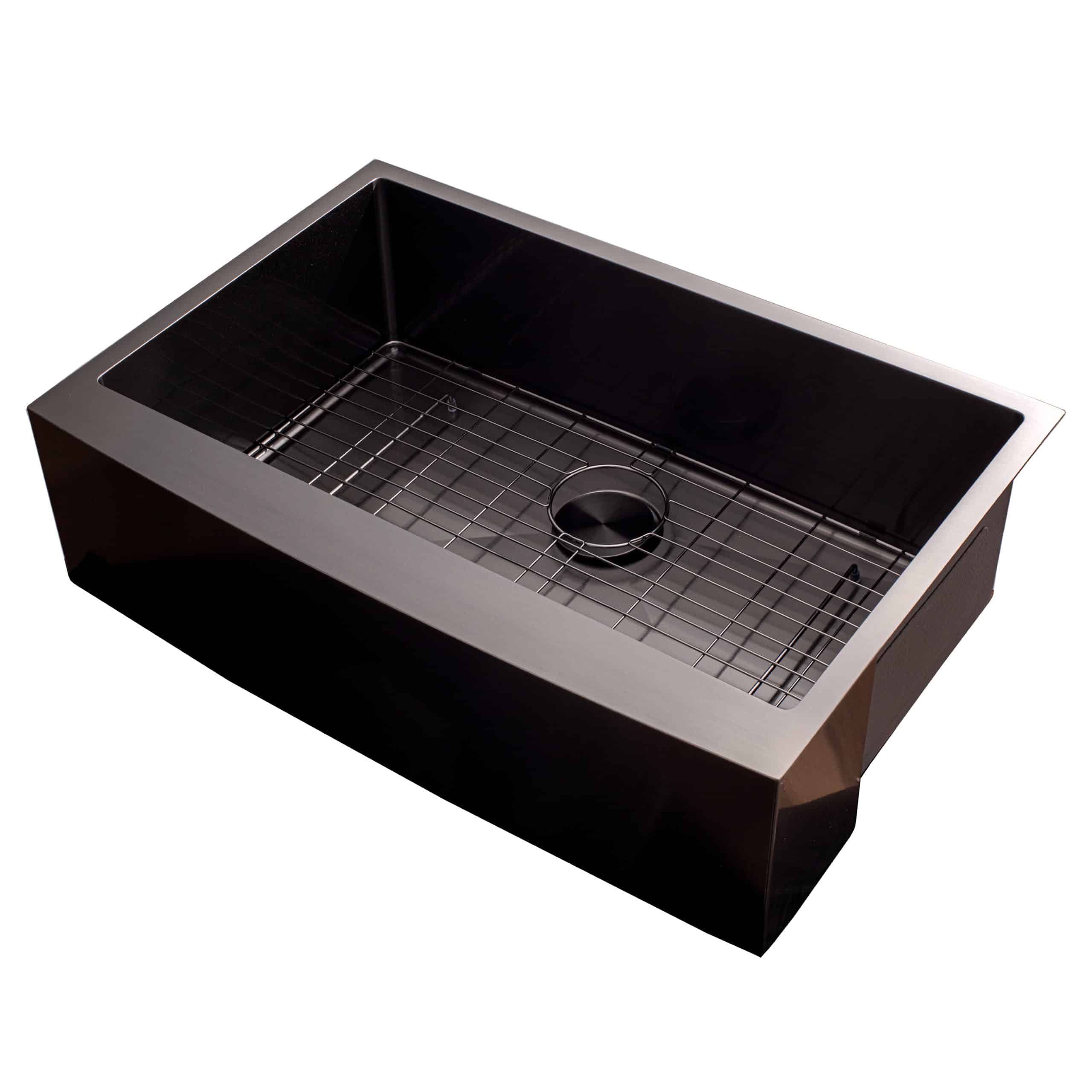

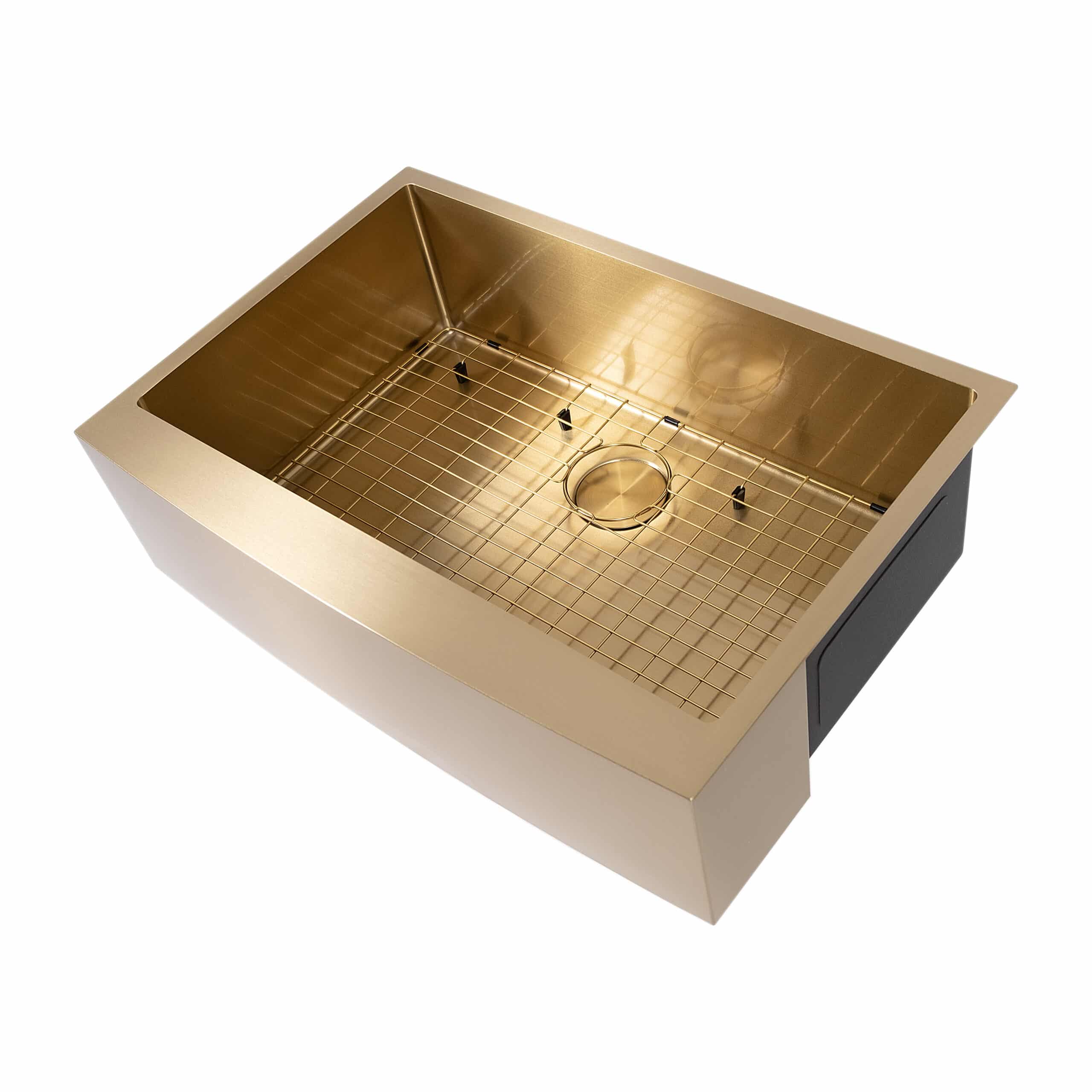

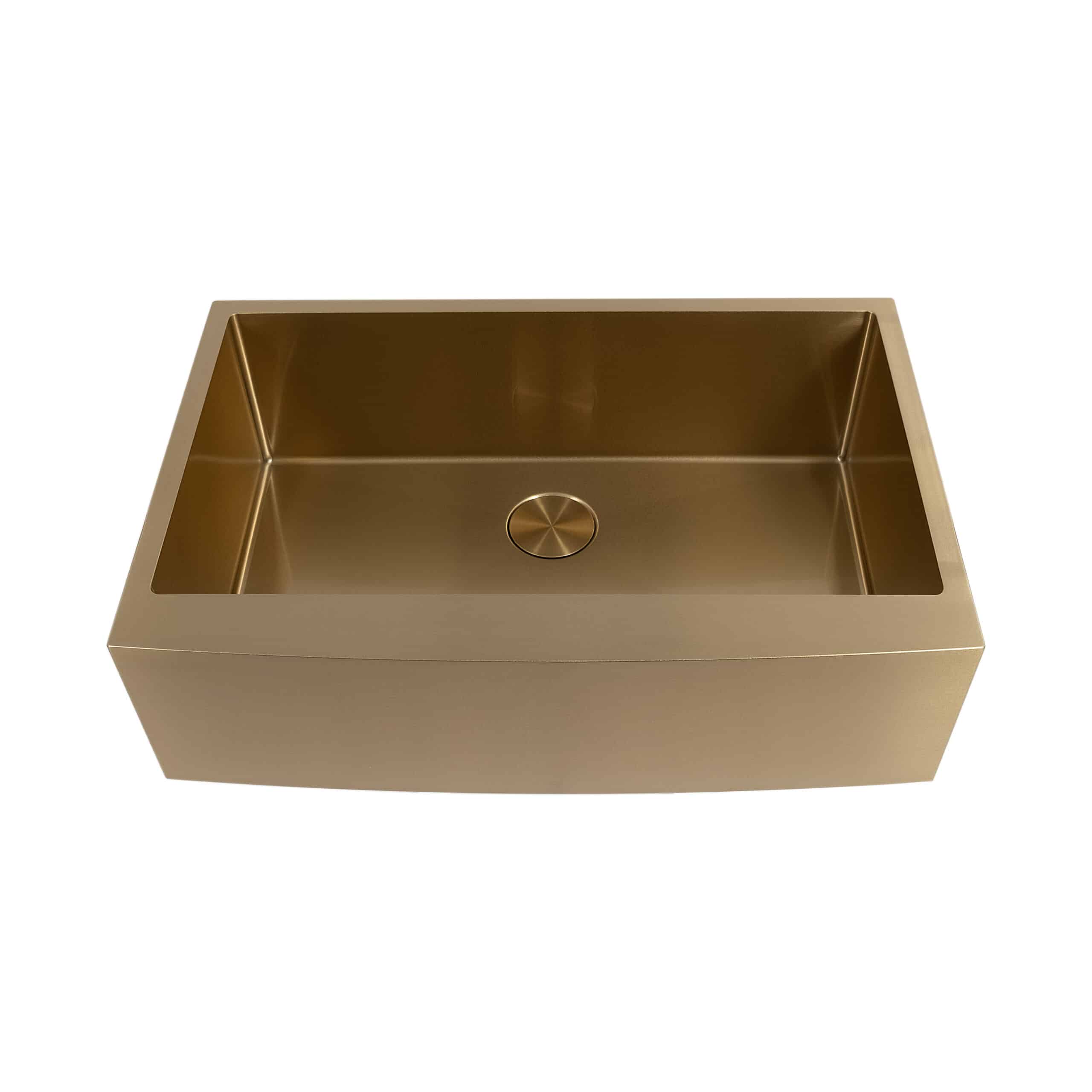

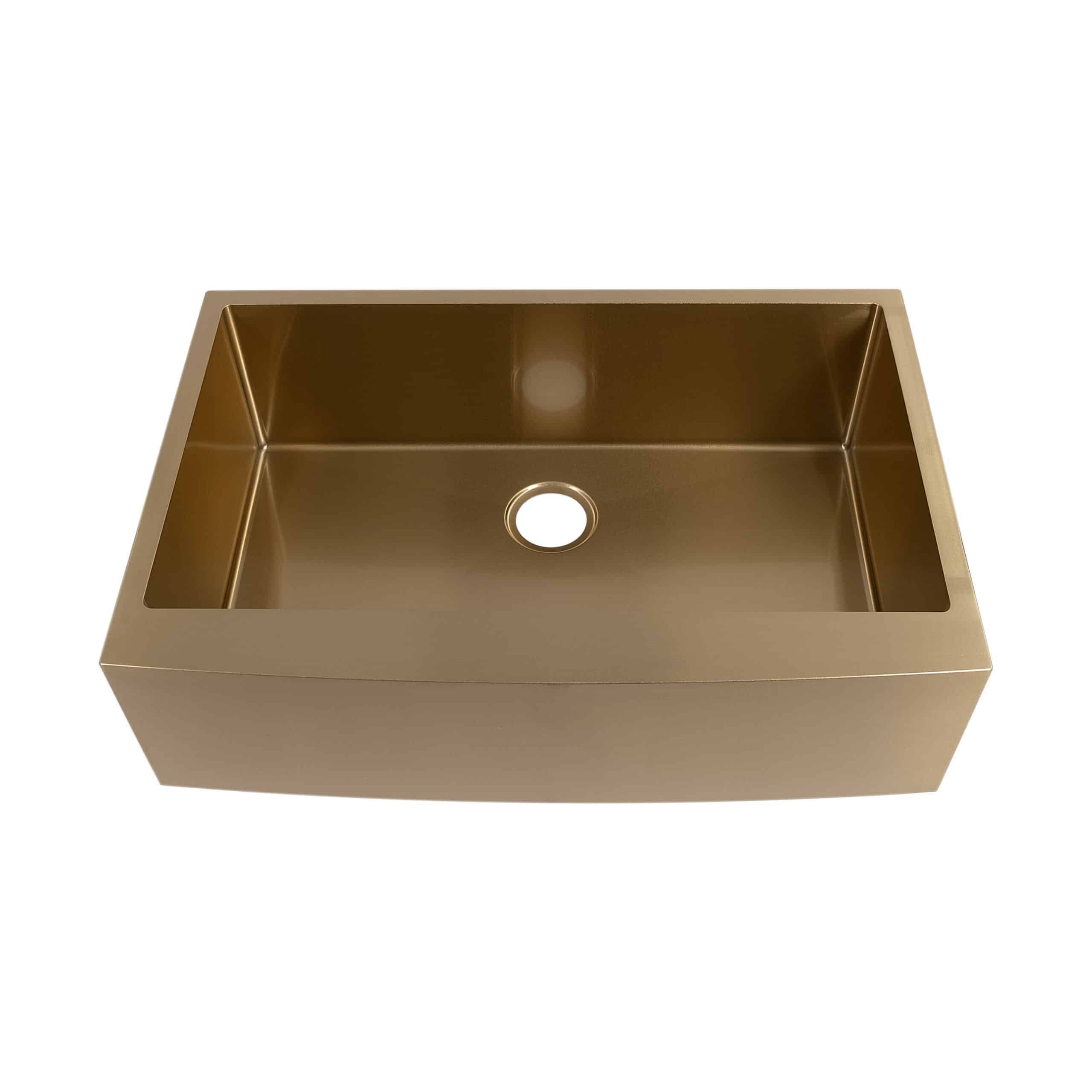

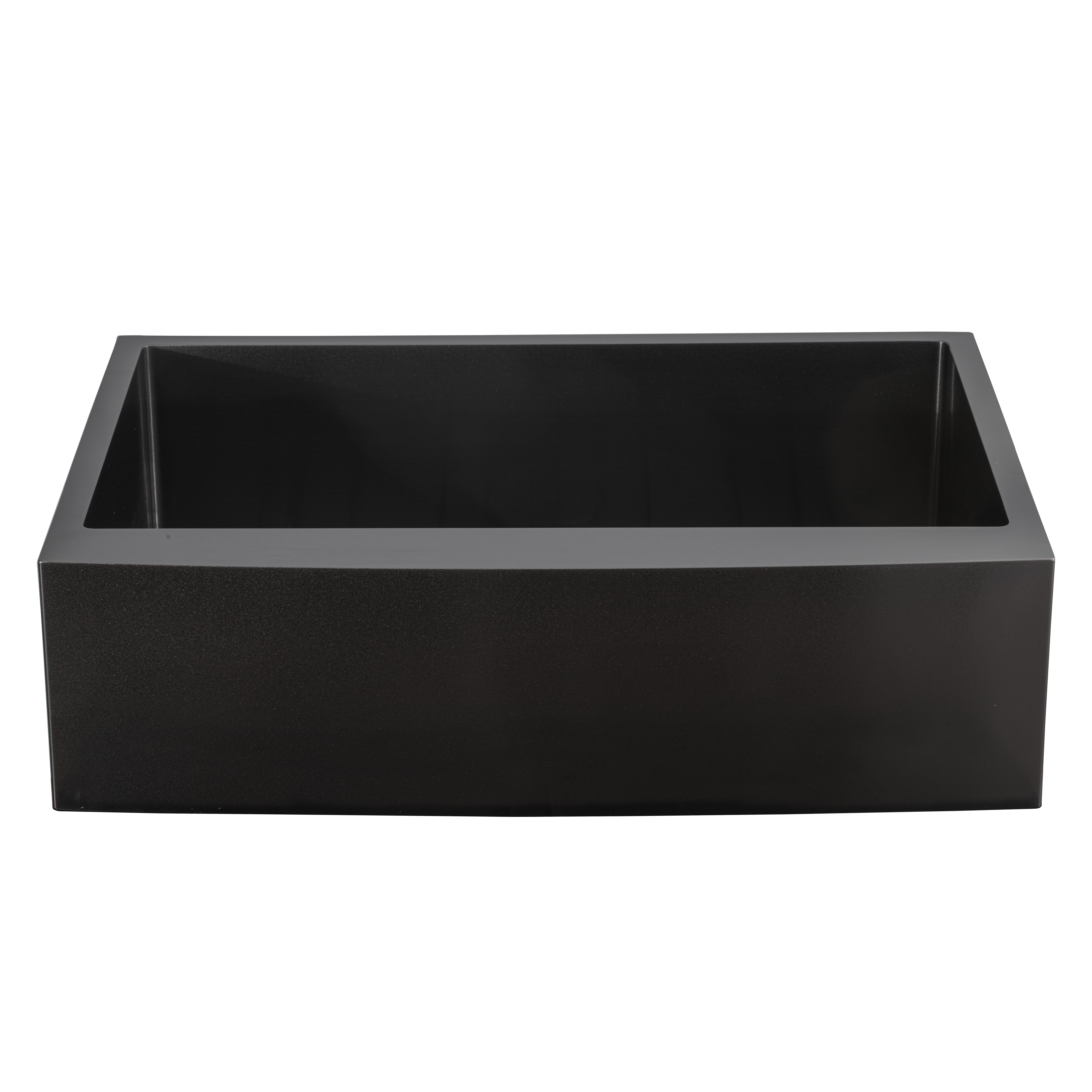

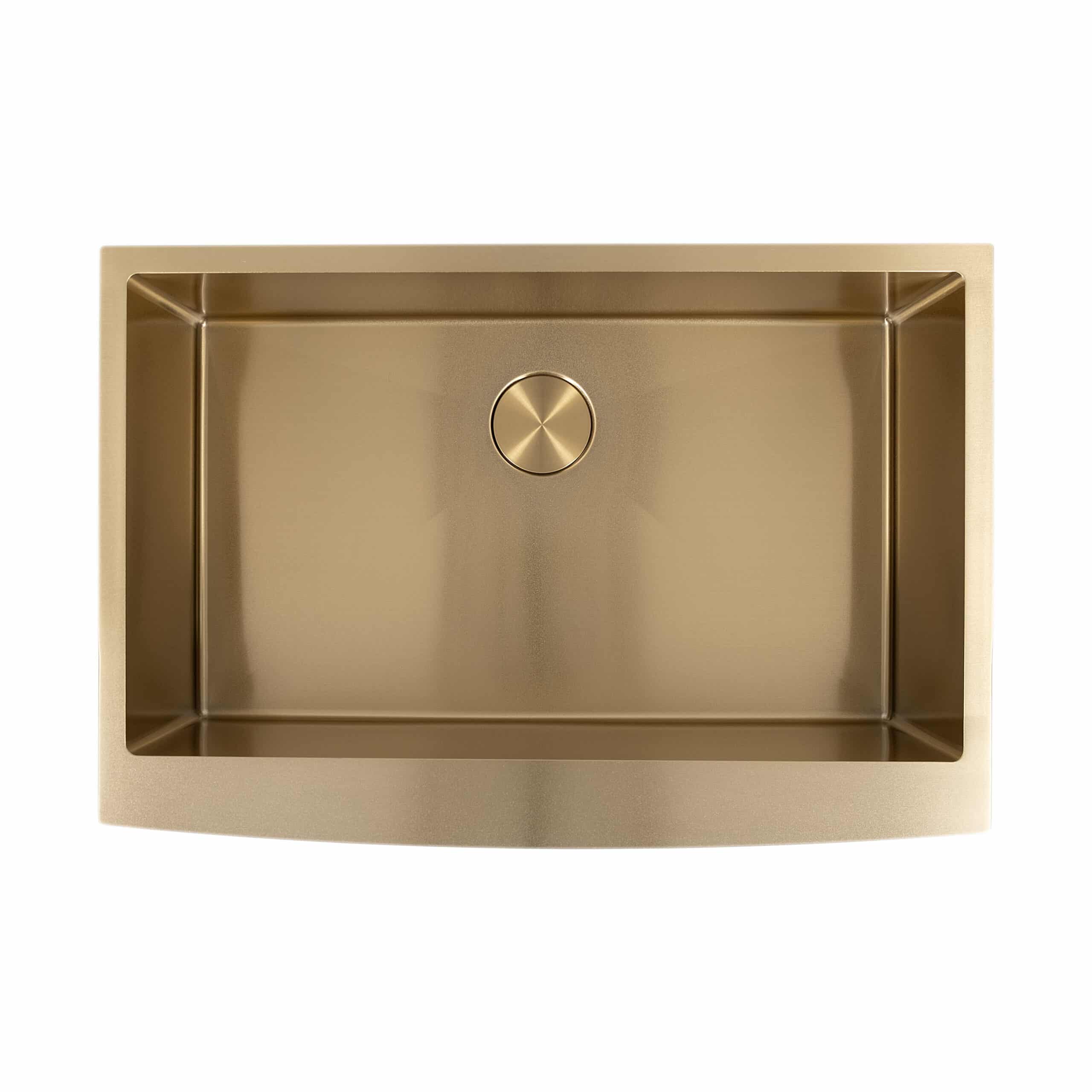

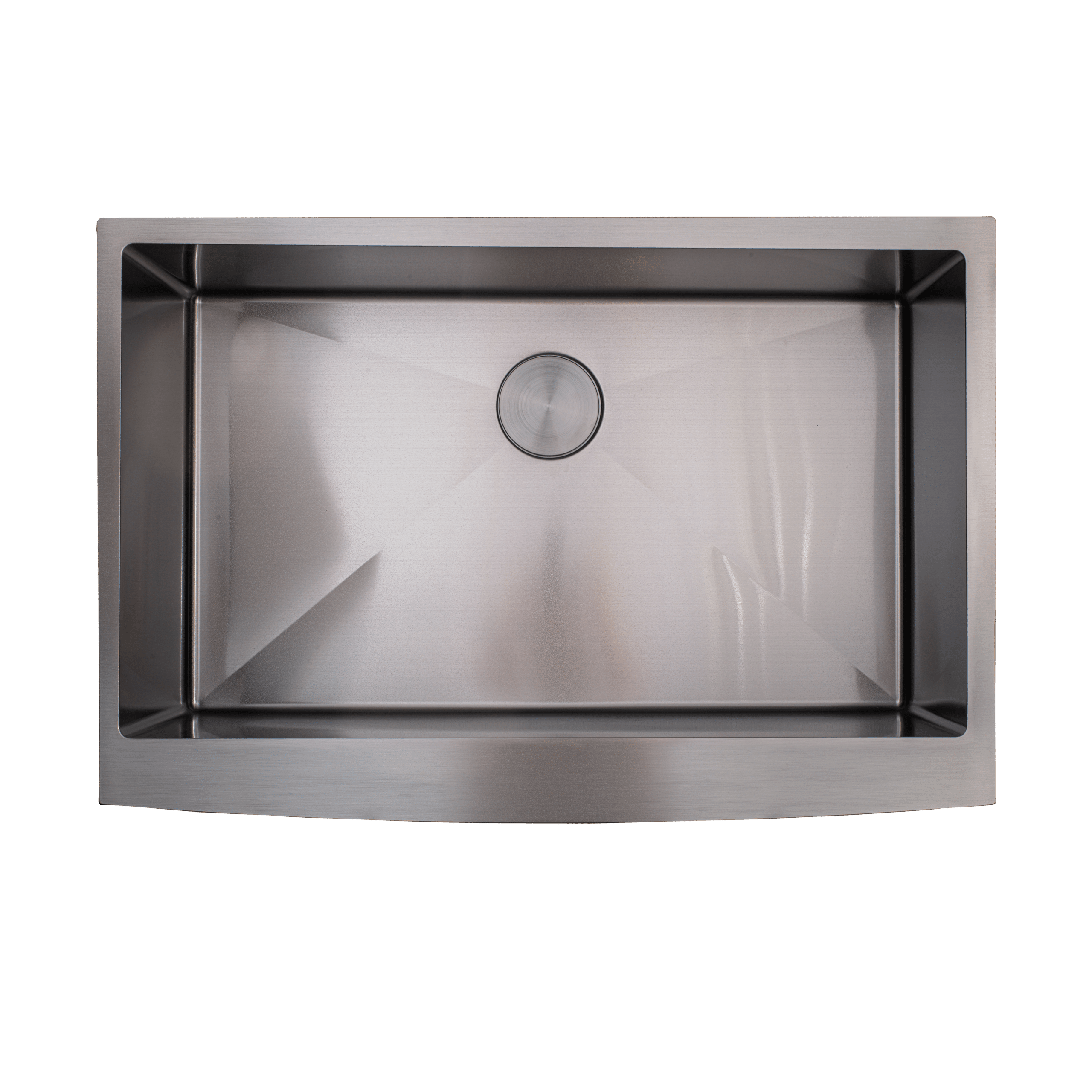

33” x 22″ x 9″ Stainless Steel Single Bowl Apron Kitchen Sink – (SA3322)

Model: SA3322

Material: T304 Stainless Steel

Gauge: 16 Gauge

Color: Stainless Steel

Finish: Brushed

Cabinet Base: 36″ Minimum Cabinet Base

Installation Type: Apron / Farmhouse

Bowl Style: Single Bowl

Overall Dimensions: 32-7/8″ L x 22-1/4″ W x 9-1/8″ H

Interior Dimensions: 30-3/4″ L x 17-7/8″ W x 10″ D

Drain Style: Round

Drain Position: Off-Center

Limited Lifetime Warranty: Yes

Certifications:

• cUPC
• ANSI

• What size Sink Base Cabinet is needed for this sink?

  This sink requires a minimum 36-in. sink base cabinet. That is the general rule of thumb is to select a sink which is 3″ smaller than your cabinet for easy installation. You could also squeeze this sink into a 33″ cabinet, but it isn’t recommended and that may also require modification to the cabinet at the discretion of you and your installer in what’s called a “custom, or modified fit.” The apron height is also 9-1/8″, with a basin depth of 10″.
• Can a garbage disposal be installed in this sink?

  Yes. A garbage disposal can be installed in this sink. (matching disposal flanges sold separately)
• Is the sink insulated and sound deadened?
  Yes, the entire sinks exterior has been dipped in rubber insulation and rubber deadened pads on all sides.

Sink Only Option Includes:

• Sink
• Cut-out Template
• Mounting Hardware

(*Drain(s) not included with this option)

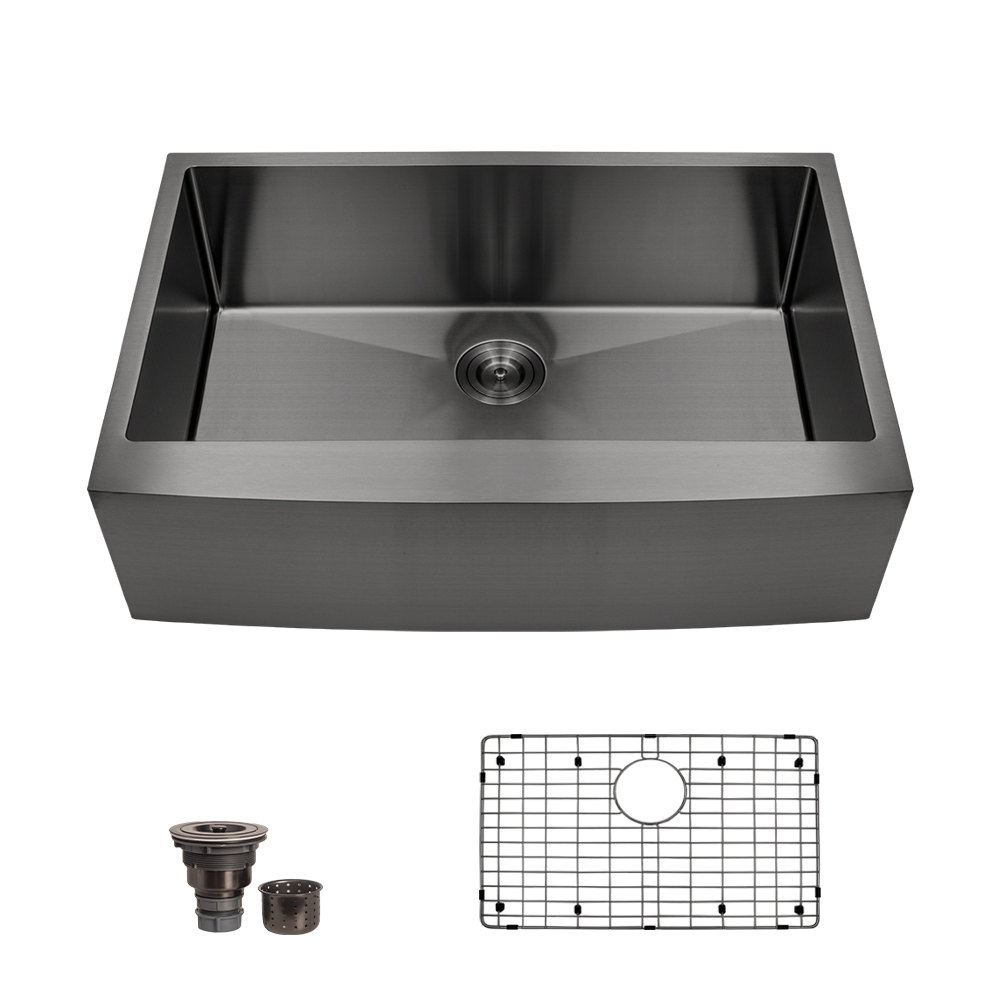

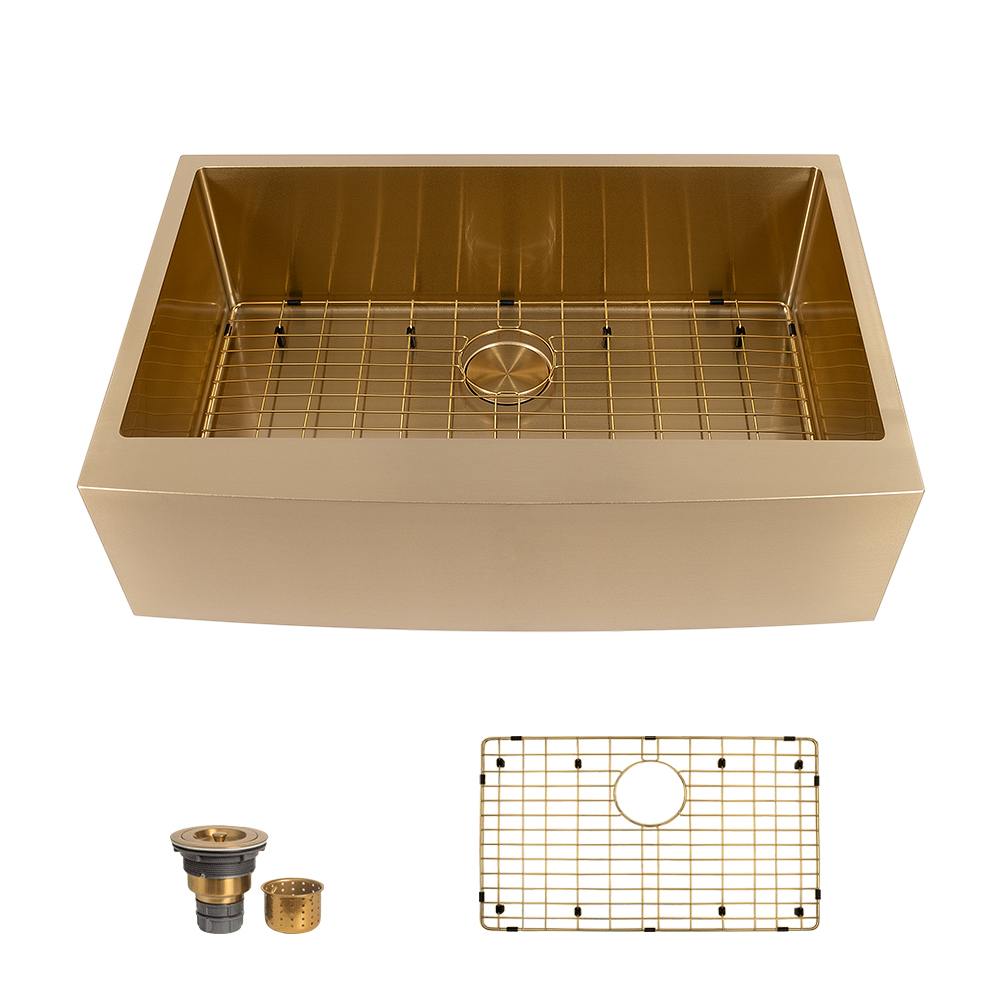

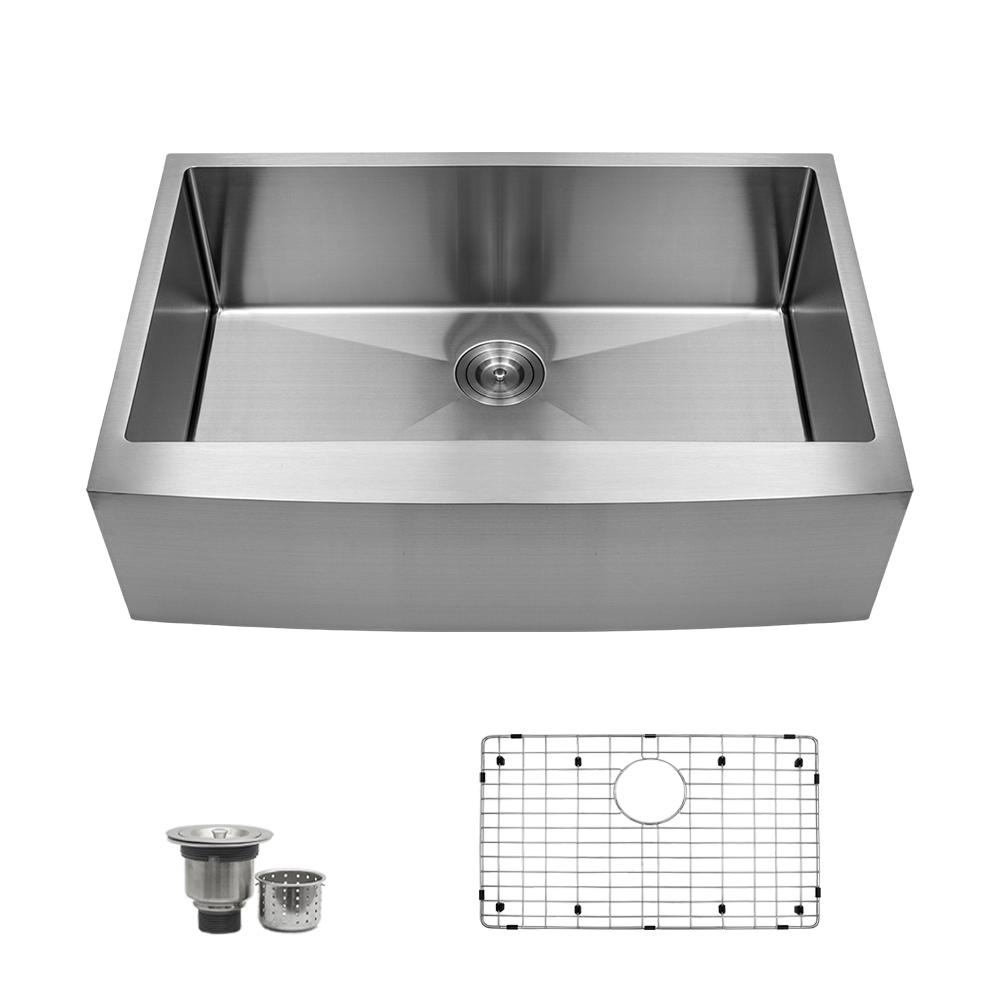

Modern Kit Option Includes:

• Sink
• Matching Basket Strainer Drain

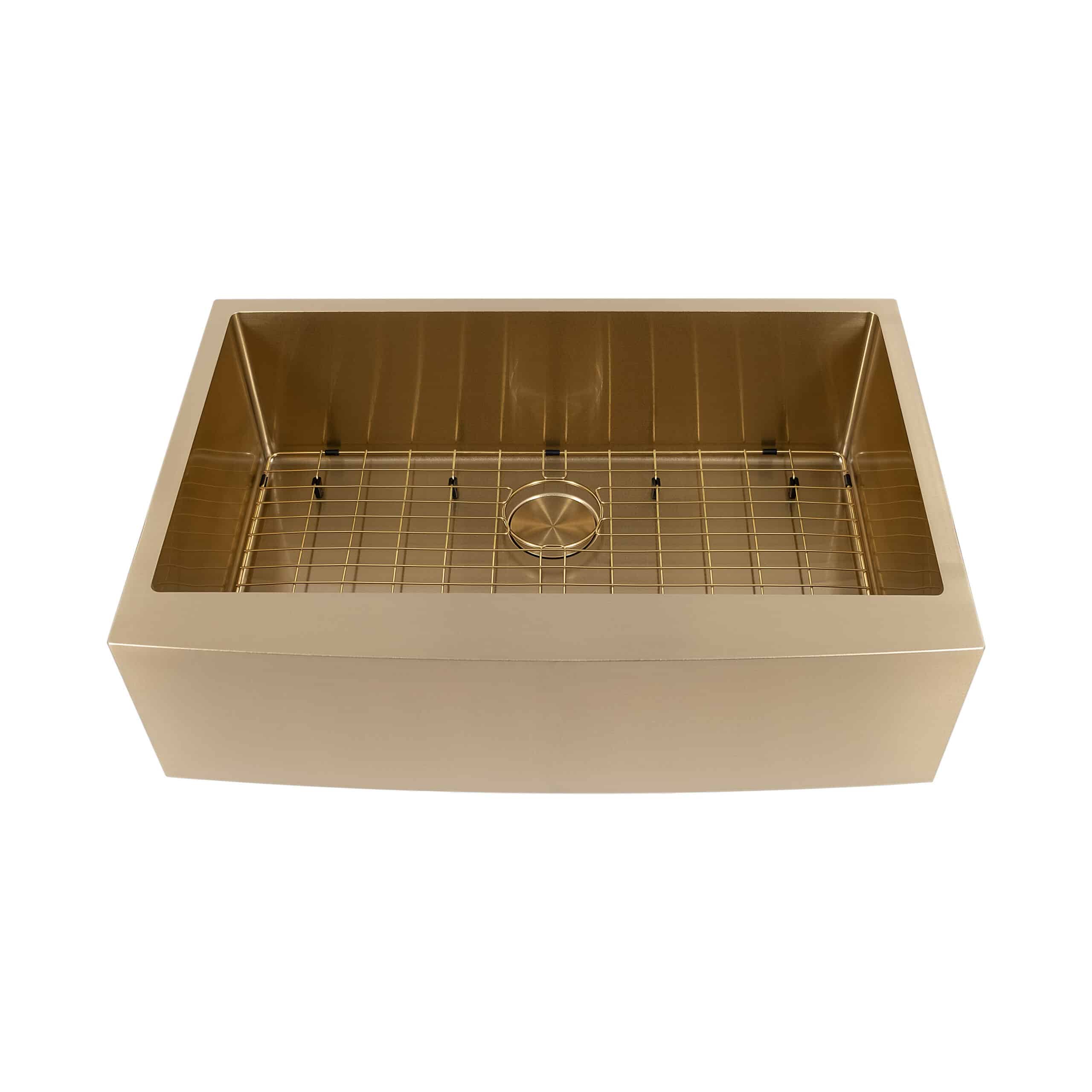

• Matching Sink Grid
• Cut-out Template
• Mounting Hardware

(*Disposal Flange Sold Separate)
